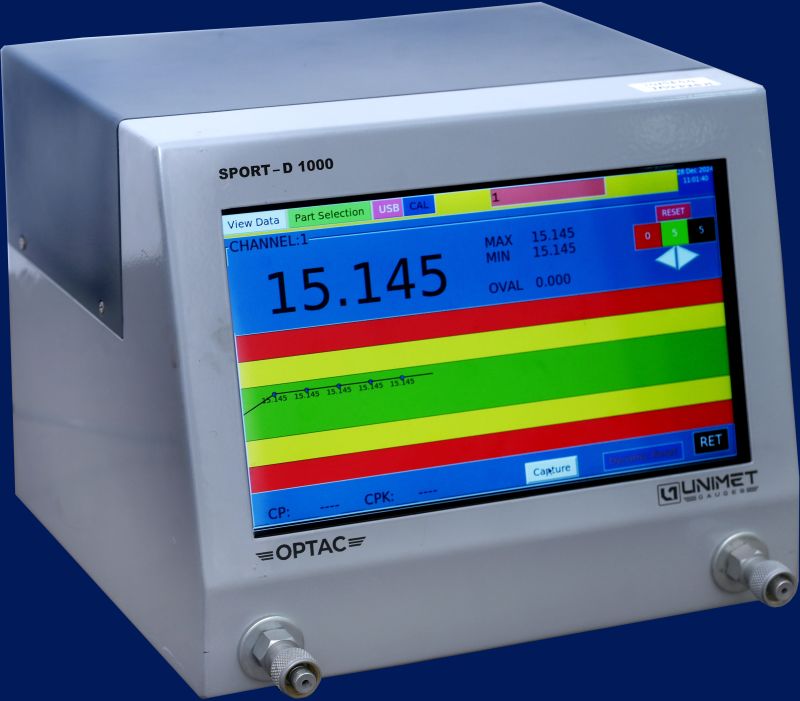

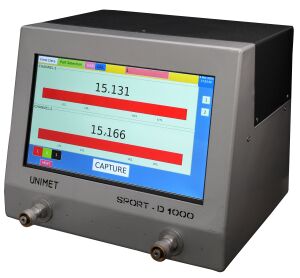

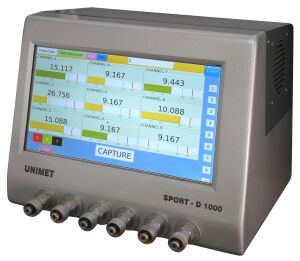

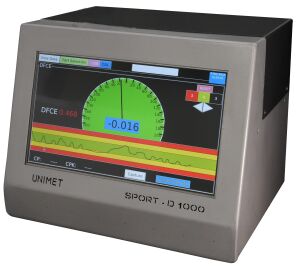

Multi channel readout for gauging

UNIMET Make SPORT-D 1000 (Statistical Process of Real-Time Data)

Key Features

• Multi-gauging
• TFT-based display
• Real-time run chart with digital display, CP & CPK
• Auto selectable display & auto display switching for in-process checking gauge
• 8 different models based on the number of channels i.e. 1 to 8
• Number of programs based on a variety of checking components
• Auto data storing & Auto air saver
• Suitable for all make air plugs & air rings
• Reports based on date, time operator
• Data can be transferred through a USB
• Real-time unit monitoring on mobile phone
• Wi-Fi connectivity & Zero maintenance

This autonomous electronic readout instrument is designed for measuring lengths such as external, internal, step, height, or depth dimensions, as well as distances. Some parameters which can be measured (but not limited to) could be external/internal diameters, straightness, squareness, ovality, run-out of faces, etc.

Its concept also enables measurements of form and orientation tolerances such as straightness or taper errors.
